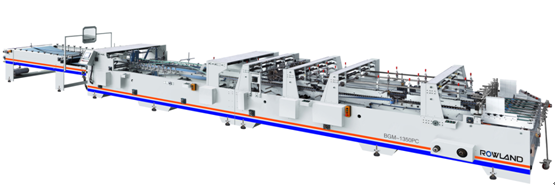

Automatic Folder Gluer Machine BGM-1350-1450PC
Model |
BGM-1350PC |
BGM-1450PC |
Max speed |
200m/Min |
200m/Min |
Paper range |
250-600g/m2, Flute B,E |
250-600g/m2, Flute B,E |
Max working width |
11350mm |
1600mm |
Power |
17.2kw |
22kw |
Weight |
7800kg |
9500kg |
Dimension |
13000×2000×1600mm |
15000×2300×1600mm |
Feeder
7 Feeding belts..
2 feeding guides.
2 side plates.
Automatic vacuum feeder on BGM-1450PC.
Pre-fold and fold unit
180° pre-folding.
Upper roller bars with quick locking and unlocking system
Pre-folding of 3rd crease line by belt.
Standard crash lock bottom device..
2 lower and 2 upper gluing wheels.
Press unit
Electric counting and rejecting device..
Blocking test device.
Conveyor unit
Manual pressure adjustment according to box thickness..
Independent speed adjustment in accordance with the carton flow.
Air cylinder pressure (BGM-1450PC) adjustment according to box thickness.
Standard equipment
Belt change without shaft.
Manufacturer of the belts is Nita .
Variable belt speed changing of the feeder, pre/final fold unit, delivery and stacker.
Motorized down carrier adjustment.
HHS gluing system is optional.
Plasma surface processor is optional
Tape applicator is optional.
Products can run on the BGM-PC
Straight line boxes.
Auto bottom boxes.
Double wall boxes.
Conical boxes optional.
Model |
BGM-1350PC |
BGM-1450PC |
A |
250-1350mm |
350-1650mm |
B |
300-800mm |
500-800mm |
|
|
Model |
BGM-1350PC |
BGM-1450PC |
A-Max |
980mm |
1080mm |
B-Max |
880mm |
880mm |
C-Max |
150mm |
150mm |
D-Max |
880mm |
900mm |
|
|
Model |
BGM-1350PC |
BGM-1450PC |
A |
350-1250mm |
500-1450mm |
B-Max |
800mm |
800mm |
C-Min |
200mm |
200mm |
D-Min |
50mm |
50mm |
E-Min |
125mm |
125mm |
F-Min |
50mm |
50mm |
|
|
|
