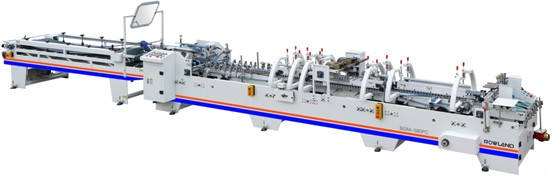

Automatic Folder Gluer Machine BGM-580PC
Model |
BGM-580PC |
Max speed |
200m/min |
Paper range |
250-600g/m2, Flute E |
Max working width |
580mm |
Power |
6.7kw |
Weight |
3500kg |
Dimension |
9000×1100×1400mm |
Feeder
5 Feeding belts..
2 feeding guides.
2 side plates.
Pre-fold and fold unit
180°pre-folding.
Upper roller bars with quick locking and unlocking system.
Pre-folding of 3rd crease line by belt.
Standard crash lock bottom device.
2 lower and 2 upper gluing wheels.
Press unit
Electric counting and rejecting device.
Blocking test device.
Conveyor unit
Manual pressure adjustment according to box thickness.
Independent speed adjustment in accordance with the carton flow.
Standard equipment
Belt change without shaft demounting.
Manufacturer of the belts is Nita .
Variable belt speed changing of the feeder, pre/final fold unit, delivery and stacker.
Manuel adjustment of carrier systems
Products can run on the BGM-PC
Straight line boxes.
Auto bottom boxes.
Double wall boxes.
Conical boxes optional.
Model |
BGM-580PC |
A |
110-580mm |
B |
90-580mm |
|
|
Model |
BGM-580PC |
A-MAX |
380mm |
B-MAX |
500mm |
C-MAX |
10mm |
D-MAX |
300mm |
|
|
Model |
BGM-580PC |
A |
180-580mm |
B-MAX |
580mm |
C-MAX |
120mm |
D-Min |
30mm |
E-Min |
80mm |
F-Min |
30mm |
|
|
|
