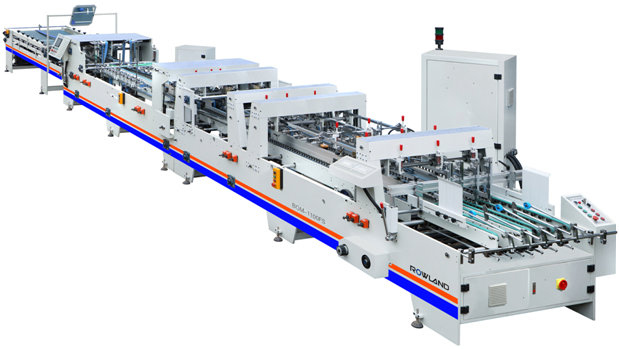

Automatic Folder Gluer Machine BGM-800-1100-1350FS

Feeder

  7 Feeding belts.
  2 feeding guides.
  2 side plates.

Pre-fold and fold unit

  180°pre-folding.
  Upper roller bars with quick locking and unlocking system.
  Pre-folding of 3rd crease line by belt.
  Standard crash lock bottom device.
  2 lower and 2 upper gluing wheels.
  2 sets of the hook device for the 4 and 6 corner box.
  Servo motor driven of the hook shafts.

Press unit

  Electric counting and rejecting device.
  Blocking test device.

Conveyor unit

  Manual pressure adjustment according to box thickness.
  Independent speed adjustment in accordance with the carton flow.

Standard equipment

  Belt change without shaft demounting.
  Manufacturer of the belts is Nita .
  Variable belt speed changing of the feeder, pre/final fold unit, delivery and stacker.
  Manuel adjustment of carrier systems
  Motorized down carrier adjustment is optional.
  HHS gluing system is optional.
  Plasma surface processor is optional
  Tape applicator is optional.

Products can run on the BGM-FS

  Straight line boxes.
  Crash lock bottom boxes.
  Double wall boxes.
  4 and 6 corner boxes.
  Conical boxes optional.

Model BGM-800FS BGM-1100FS BGM-1350FS A 200-900mm 200-1150mm 280-1350mm B 180-750mm 200-800mm 300-800mm

Model BGM-800FS BGM-1100FS BGM-1350FS A-Max 850mm 880mm 980mm B-Max 750mm 880mm 880mm C-Max 120mm 120mm 150mm D-Max 600mm 700mm 800mm

Model BGM-800FS BGM-1100FS BGM-1350FS A-Max 180-800mm 300-1050mm 350-1250mm B-Min 750mm 800mm 800mm C-Min 150mm 150mm 200mm D-Min 50mm 50mm 50mm E-Min 125mm 125mm 125mm F-Min 50mm 50mm 50mm

Model BGM-800FS BGM-1100FS BGM-1350FS A 260-800mm 280-1000mm 300-1300mm B 160-650mm 200-750mm 260-750mm C 30-100mm 30-100mm 30-100mm

Model BGM-800FS BGM-1100FS BGM-1350FS A 400-800mm 400-1000mm 400-1300mm B 160-650mm 200-750mm 260-750mm C 30-100mm 30-100mm 30-100mm
