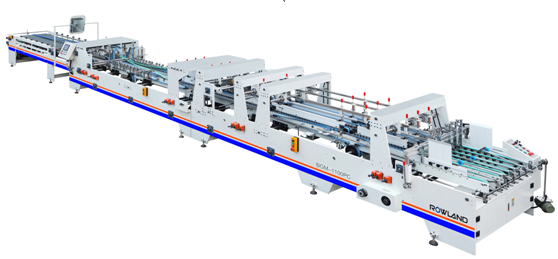

Automatic Folder Gluer Machine BGM-800-1100PC

Feeder

  7 Feeding belts.
  2 feeding guides.
  2 side plates.

Pre-fold and fold unit

  180°pre-folding.
  Upper roller bars with quick locking and unlocking system.
  Pre-folding of 3rd crease line by belt.
  Standard crash lock bottom device.
  2 lower and 2 upper gluing wheels.

Press unit

  Electric counting and rejecting device.
  Blocking test device.

Conveyor unit

  Manual pressure adjustment according to box thickness.
  Independent speed adjustment in accordance with the carton flow.

Standard equipment

  Belt change without shaft demounting.
  Manufacturer of the belts is Nita.
  Variable belt speed changing of the feeder, pre/final fold unit, delivery and stacker.
  Manuel adjustment of carrier systems.
  Motorized down carrier adjustment is optional.
  HHS gluing system is optional.T-slot construction.
  Plasma surface processor is optional.
  Tape applicator is optional.

Products can run on the BGM-PC

  Straight line boxes.
  Crash lock bottom boxes.
  Double wall boxes.
  Conical boxes optional.

Model BGM-800PC BGM-1100PC A 200-900mm 200-1150mm B 180-750mm 200-800mm

Model BGM-800PC BGM-1100PC A-Max 850mm 880mm B-Max 750mm 880mm C-Max 120mm 120mm D-Max 600mm 700mm

Model BGM-800PC BGM-1100PC A 180-800mm 300-1050mm B-Max 750mm 800mm C-Min 150mm 150mm D-Min 50mm 50mm E-Min 125mm 125mm F-Min 50mm 50mm
